Champion
Champion 9200W Portable Generator W/Wheel Kit - 100110
Volt Guard & Power Meter
-
Description
-
Specs
-
Downloads
Our rugged and reliable 9200-watt generator with included engine features like; Intelligauge to monitor output and Volt Guard™ to prevent overloads. This 459cc Champion engine has all the power you need for home backup during an outage or your next project. Ultra-Powerful at 11,500 starting watts and 9200 running watts, enjoy up to 10 hours of run time on a full tank of gasoline with a noise level of 74 dBA from 23 feet.Trust the reliable 459cc Champion engine with its battery-included electric start featuring a reliable toggle switch, plus built-in Cold Start Technology for easy starts in cold weather. All outlets are covered which include; One 120/240V 30A locking outlet, a 120/240V 50A outlet (14-50R) and four 120V 20A GFCI outlets. The champion 9200W also has Volt Guard™ built-in surge protector that prevents overloads and keeps your equipment safe.
| STARTING WATTS (GASOLINE) | 11500 |
| RUNNING WATTS (GASOLINE) | 9200 |
| STARTING AMPS @ 120V (GASOLINE) | 95.8 |
| STARTING AMPS @ 240V (GASOLINE) | 47.9 |
| RUNNING AMPS @ 120V (GASOLINE) | 76.7 |
| STARTING AMPS @ 240V (GASOLINE) | 38.3 |
| VOLTAGE | 120/240 |
| FREQUENCY | 60Hz |
| OUTLETS | 120/240V 50A (14-50R), 120/240V 30A LOCKING (L14-30R), GFCI 120V 20A DUPLEX (5-20R) (2) |
| GFCI OUTLETS | YES |
| COVERED OUTLETS | YES |
| COVERED CIRCUIT BREAKERS | NO |
| GASOLINE RUN TIME AT 1/2 LOAD | 10 HOURS |
| NOISE LEVEL | 74 dBA |
| PARALLEL CAPABILITY | NO |
| DC OPERATION | NO |
| VOLTMETER | INTELLIGAUGE WITH POWER METER |
| AUTOMATIC VOLTAGE REGULATION | YES |
| BATTERY | YES |
| START TYPE | RECOIL, ELECTRIC |
| ENGINE BRAND | CHAMPION |
| ENGINE SIZE | 459cc |
| ENGINE TYPE | 4-STROKE |
| ENGINE SPEED | 3600 |
| FUEL TYPE | GASOLINE |
| FUEL GUAGE | NO |
| GASOLINE CAPACITY | 7.7 GAL. |
| GASOLINE TANK MATERIAL | STEEL |
| ENGINE OIL TYPE | 10W-30 |
| ENGINE OIL CAPACITY | 1.2 QT. |
| ENGINE OIL INCLUDED | YES |
| LOW OIL SHUT-OFF | YES |
| WHEELS | YES |
| WHEEL TYPE | SOLID |
| WHEEL DIAMETER | 9.5 INCHES |
| PGMA G300-2018 COMPLIANT | NO |
| EPA CERTIFIED | YES |
| CARB COMPLIANT | YES |
| DIMENSIONS | 27.7"L x 27.6"W x 26.6"H |
| WEIGHT | 213 POUNDS |
The 459cc Champion single-cylinder OHV engine has what it takes to handle the multiple power tools and large equipment you need to get the job done.Fill up the 7.7-gallon tank of gasoline, and enjoy up to 10 hours of power at 50% load. From 23 feet, the noise level is 74 dBA, a bit louder than a vacuum cleaner. CO Shield technology monitors the accumulation of carbon monoxide. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine.
This generator produces 74 dBA of noise, Which is realitively quiet compared to other generators in its class.
It is equiped with a recoil and electric starter to add convience for the user.
The Champion 9200W generator features a 14-50R outlet and a twist-lock L14-30R receptacle which make it camper and transfer switch ready.

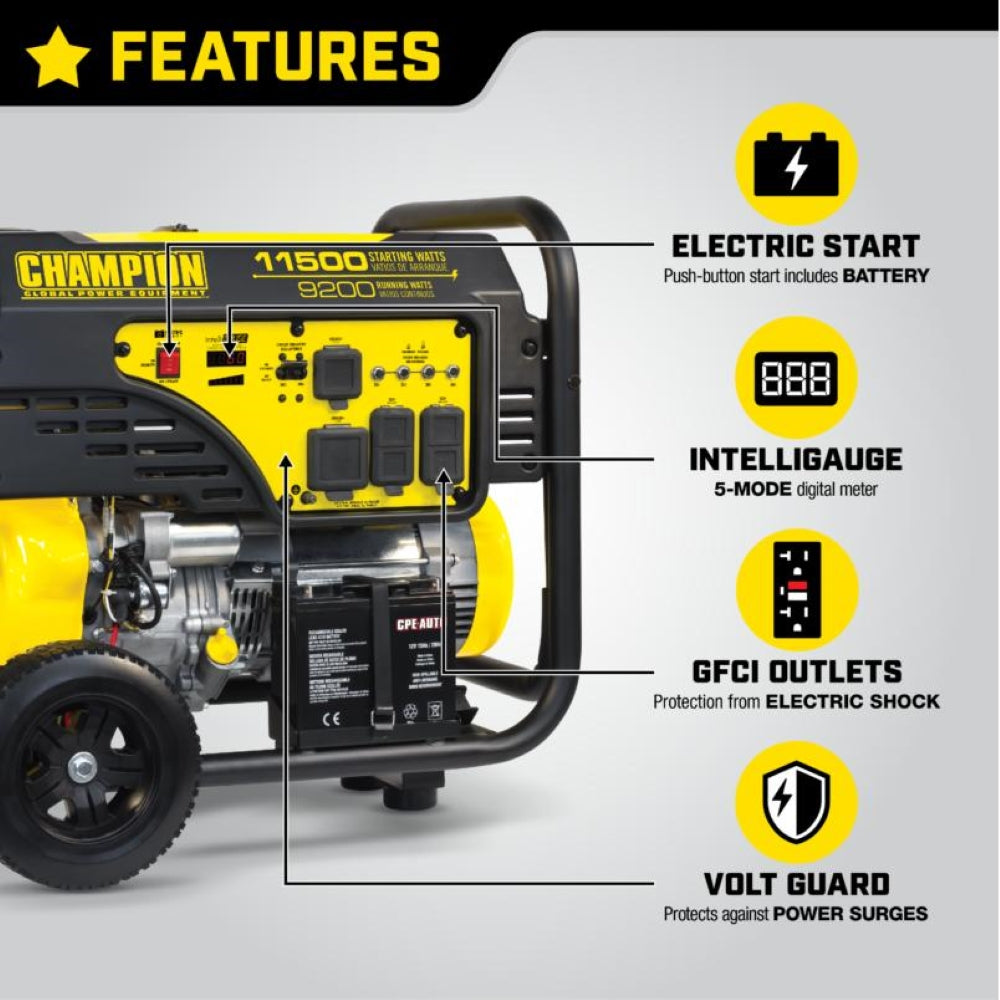

- One 120/240V 30A locking outlet, a 120/240V 50A outlet (14-50R) and four 120V 20A GFCI outlets, plus Volt Guard™ built-in surge protector prevents overloads and keeps equipment safe
- Intelligauge with Power Meter on portable generator keeps track of voltage, hertz and run-time hours to easily monitor power output and track maintenance intervals
- Portable generator accessories include: engine oil, oil funnel, wheel kit, battery
- Includes 3-year limited warranty with free lifetime technical support from dedicated experts
- EPA-certified/CARB-compliant
- Includes low oil shut-off sensor and 1.2 quarts of 10W-30 engine oil
- Foldaway U-shaped handle and never-flat tires for easy transport
- Offers Cold Start technology for low temperatures
